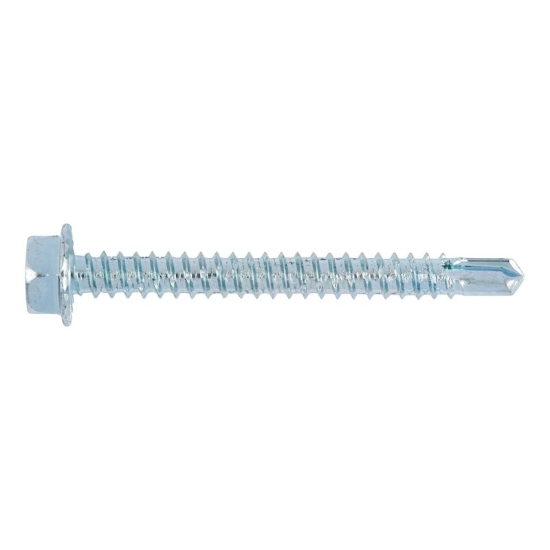

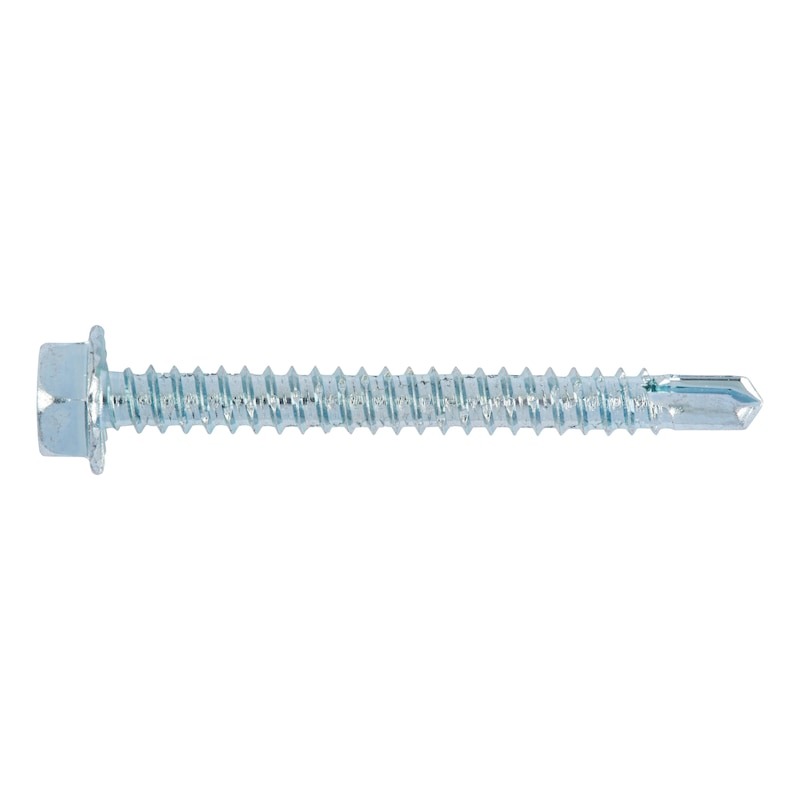

Borskrúfa 6kt 6,3x25 10mm topp

Vörunúmer: 0214 63 25

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Steel
Surface	Galvanised
Nominal diameter (d1)	6.3 mm
Length (l1)	25 mm
Head height (k1)	6.45 mm
Head type	Hexagon head
RoHS-compliant	Yes
Drive type	Hexagon
Thread type	Self-tapping screw thread
External drive (s1)	WS10
Other standard	Company standard
Drill tip length (lp)	5.6 mm
For min. substructure thickness	2 mm
Max. material thickness to be drilled through (metal)	6 mm
Min./max. recommended installation speed (idling)	1200-1800 U/min(rpm)
Flange diameter (dk)	12.19 mm

Skrifaðu þína eigin umsögn

Titill umsagnar: *

Texti umsagnar: *

Einkunn:

Nafnið þitt *

Netfangið þitt *

Fyrirspurn *

Tæknilegar upplýsingar

Material	Steel
Surface	Galvanised
Nominal diameter (d1)	6.3 mm
Length (l1)	25 mm
Head height (k1)	6.45 mm
Head type	Hexagon head
RoHS-compliant	Yes
Drive type	Hexagon
Thread type	Self-tapping screw thread
External drive (s1)	WS10
Other standard	Company standard
Drill tip length (lp)	5.6 mm
For min. substructure thickness	2 mm
Max. material thickness to be drilled through (metal)	6 mm
Min./max. recommended installation speed (idling)	1200-1800 U/min(rpm)
Flange diameter (dk)	12.19 mm
