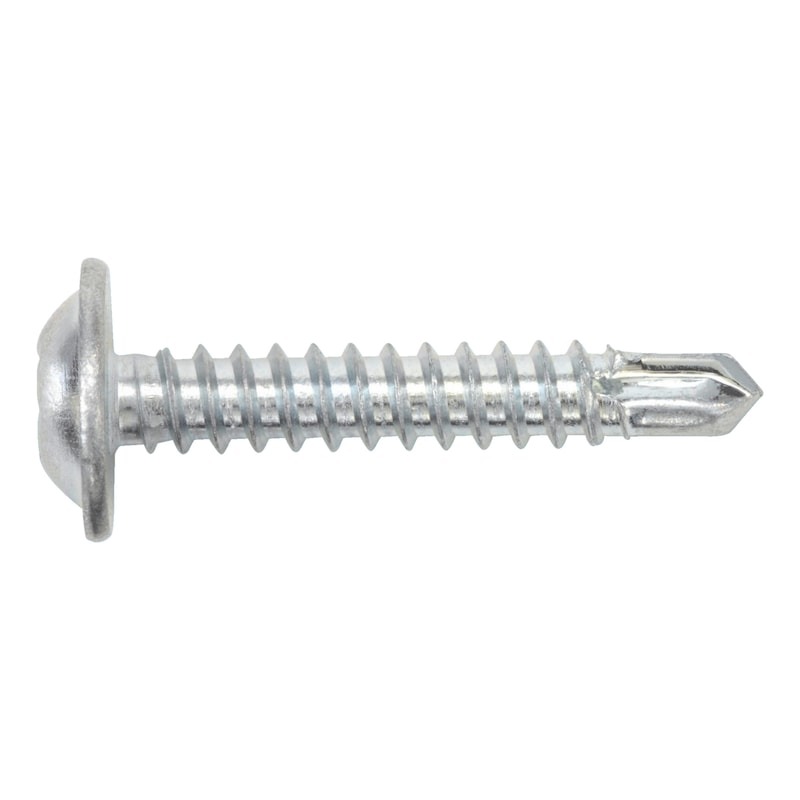

Borskrúfa 4,2x16 stór haus ph2

Vörunúmer: 0218 4 16

sjá allar tegundir

Fljótleg afhending

Ókeypis sendingarkostnaður

Tæknilegar upplýsingar

Nafn á eigindi	Eigindargildi
Material	Steel
Surface	Galvanised
Nominal diameter (d1)	4.2 mm
Length (l1)	16 mm
Head diameter (dk)	11 mm
Head height (k1)	2.6 mm
Internal drive	H2
Head type	Pan head
RoHS-compliant	Yes
Thread type	Self-tapping screw thread
Other standard	Company standard
Drill tip length (lp)	3.7 mm
For min. substructure thickness	1.5 mm
Max. material thickness to be drilled through (metal)	3.5 mm
Min./max. recommended installation speed (idling)	1700-2500 U/min(rpm)
Max. attachment thickness (lB)	9 mm
